Our Straight Sliding system range for wooden and metal doors is a wide range of top hung system for easy movement of anything from light commercial doors up to very heavy and large industrial application. To accommodate for different building designs, doors can slide to one or both slides and are also suitable to cover any width of opening.

*For optimum operation the door width should not exceed 3/4 of the door height

 PC 290
400 lb Doors

PC 301H
1000 lb Doors

.PC 305
1500 lb Doors

PC 307
4400 lb Doors

 Center-hung
 Offset Centerfold

Standard US Specification Pages
Track Rollers Hangers

Door Track Systems

Standard Duty
Pocket Door Track
Tiger Door Track
Round Stainless Rail
Open Rail
Bottom Track Systems
Barn Door Rail Track
Stainless Rail Systems

Pc Henderson
Industrial Track
Flexirol System
Pacer System

Specialty Applications
Minimum Top Clearance
Full Access Bi-Fold

Door Guides
Pocket Door
Wall Mounted door
Bi-Pass- multi-door
FloorMounted Guides



Replacement Hardware

Closet Door Rollers

Bi-Pass Doors
Single Wheel
2 Wheel

Pocket Door
Center Hung Rollers

Mirrored Doors
Metal Frame Rollers
Metal Frame Guides
Bottom Rollers

Bi fold Doors
Bracket
Pivots
Guide Wheels
Pivot Caps
Pivot Pins
Snuggers


All max weights are Door weight, using 2 rollers per door

A
gavalized industral track
PC Henderson

TRACK AND ROLLER SETS
PC 290 track

Folding door kits also available

Rollers for 290 Track - Straight Sliding - 300 lb doors
Dimensions page Installation Instructions Overhead Installation Instructions Sidewall

53K

53K roller
click above for larger image
Fits door 1 1/2" - 1 7/8"



57K

57K roller
click above for larger image

52K

width=
click above for larger image



56K

height=
No plate Included- for metal doors
Wheel Diameter = 1 7/16"
290 track
Galvanized finish Steel

CAWARNING

1 3/4" tall
1 7/16 wide
14G thickness
plate size 2 1/4" x 3 3/4"
plate size 1" x 51/2"
plate size
top 1" x 5" - side 1 x 5 1/4' 		Short Bolt - B= 1 1/4"
Long Bolt - B= 4 3/8"
Bolt Diameter 13/32"


12' track
$ 130.00 + 500 shipping

53K/Nylon - $ 64.99
53K/Steel/200 - $74.99
57K/Nylon - $ 54.99 ea.
57K/Steel $ 64.99 ea
52K/Nylon- $ 59.99 ea
52K/Steel $69.99 ea
 56K/N - 1 1/4" bolt Lenth $ 39.99ea
56KX/N - 4 3/8" bolt Lenth $ 44.99ea


;


CAWARNING
CAWARNING
CAWARNING
CAWARNING

Stainless Steel 290 track and rollers - 300 LBS
53/ 290 200 Stainless Steel

$ 1200.00 ea. 		57/ 290 200 Stainless Steel

$ 1000.00 ea. 		  290 Stainless Steel Track
8'
$ 950.00



Track Supports
290 track
Track can also be attached directly by drilling through the track
Maximum spacing 3 feet between brackets
width=

dimensions		 width=
1A / 290
1A / 290 EC/
3A / 290
1AX / 290
 4R/290
Bracket End Cap
Holds track in place
fits into brackets
Top Mount
Overhead Bracket
Sidewall Bracket
for Joining 2 tracks
 Suspended
Overhead Bracket
$ 11.99 $ 2.99 $ 29.99 $ 17.99 $ 19.99

Quantity
Quantity
Quantity

Quantity
Quantity
    3AX/290 Joiner
$ 39.99
All dimensions on the site are approx, please call to verify any critical measurements
We recommend to never Prepare a job site without having the parts and take no responsibility if you do.
border=
click above for larger image		 border=
click above for larger image

border=
click above for larger image

Standard

 track_stop
Optional Stop for
200 lb doors max
1A/290 - BLK 5 / 290 4A / 290 HH3/290 KT 129B
Sidewall Bracket
single track
Black- Finish		 Sidewall Bracket
double (2) tracks		 Top Mount
Overhead Bracket
Track must be fed into bracket		 PC Heavy Duty Track
Mounted Stop		 KT Light Duty Track
Mounted Stop
$ 22.99 $ 59.99 $ 34.99 $ 52.99 $ 23.99

Quantity

Quantity

Quantity

Quantity
CAWARNING
Quantity

B
width= PC Henderson

TRACK AND ROLLER SETS

PC301H

Rollers for 301H Track - Straight Sliding to 1000 lb doors
Dimensions page Installation Instructions Overhead Installation Instructions Sidewall


Fits door 1 3/4" - 2 1/4"
1000 lb door max

1000 lb door max
1000 lb door max
height=
1000 lb door max
No plate - for metal doors
Wheel Diameter = 2 7/32"
width=
301H Track
2 5/8"" tall
2 5/32" wide
12G thickness

dimensions
plate size 3" x 7"

53A
plate size 1 1/2" x 7 1/4"

57A
plate size
top 1 1/2" x 9" - side 1 1/2" x 6 1/2"

52A
Short Bolt Length 2 3/4"
Diameter 5/8"
 Galvanized finish Steel
Nylon Wheels 1000 lb Door $ 139.99
Nylon Wheels 1000 lb Door $ 124.99
Nylon Wheels 1000 lb Door $ 129.99
 56A/N 2 3/4" bolt length - $ 99.99 301H track
Steel Wheels 800 lb Door $ 149.99
Steel Wheels 800 lb Door $ 134.99
Steel Wheels 800 lb Door $ 139.99
 56AX/N 5 11/16" bolt length - $ 109.99





CAWARNING
CAWARNING
CAWARNING
CAWARNING
CAWARNING








Galvanized
301 H 12' $ 219.99
+ Freight

$ 500 charge will be added for
12 FOOT freight delivery

CAWARNING

Stainless Steel 300 track and rollers 600 LB door
53/301/SS 57/301/SS 301 Stainless 8'
$ 2,399.00 $ 2,399.00 $ 1,699.00

See our Stainless Steel door track page for more Stainless options		 >
All dimensions on the site are approx, please call to verify any critical measurements
We recommend to never Prepare a job site without having the parts and take no responsibility if you do.

Track and Supports 301H track
Track can also be attached directly by drilling through the track
Maximum spacing 3 feet between brackets
width=
1A / 301
1A / 301 / EC
3A / 301
1AX / 301
Sidewall Bracket
single track
Bracket End Cap
Holds track in place
fits into brackets
Top Mount
Overhead Bracket
 Sidewall Bracket
for Joining 2 tracks
$ 22.99
 $ 3.99
$ 57.99
 $ 39.99
Quantity
Quantity
Quantity
Quantity

border=
click above for larger image		 border=
click above for larger image		 width=
5 / 301 4A / 301 HH3/301 4R/301S
Sidewall Bracket
double (2) tracks		 Top Mount
Overhead Bracket
Track must be fed into bracket		 Track Mounted Stop Suspended
Overhead Bracket
$ 84.99
 $ 59.99 $ 93.99

$ 74.99
Quantity
Quantity
Quantity
CAWARNING
Quantity
CAWARNING
Rollers for 301H Track - Folding Doors to 150 lb doors
301 Endfold instructions
><br> </div></td> <td width=
height=
height=

21AP
pivot set width=
21AP Set End Door Layout

21 A /4S
21 A /S
21 A/P
To be used adjacent to
Swing Door
Odd Door Count Applications
Endfold Hanger
1 for every 2 Panels
Top Endfold Pivot set
Includes 21R/94
$ 169.99
CAWARNING
$ 159.99
CAWARNING
$ 219.99
CAWARNING



Endfold partition is a quality range of top hung folding partition systems for wooden doors weighing up to 80kg.
Ideally suited for residential and commercial partitions,
Council Endfold can cover any width of opening with any number of folding doors.



Folding units of up to eight leaves can be hinged to post and floating units must consist of four,
six or eight door leaves with a minimum clearance of 2mm between each one .
Any access doors used with the systems should be a swing door or a wicket door housed within one of the door leaves.

 height=
21R/94
Bottom Guide Endfold Pivot
$ 39.99
CAWARNING

width=
3/4" tall x 13/16" wide
Bottom Guide Track
Aluminum Track

Quantity

C height= PC Henderson
1500 LB
TRACK AND ROLLER SETS

PC 305


PC 305 Hardware is Special order

general lead time for these items is 2-3 weeks
Rollers for 305 Track - Straight Sliding to 1500 lbs



Fits door 1 3/4" - 2 1/4"
1500 lb door max
1500 lb door max		 305 track

305 Track
3 11/16" tall
2 1/4" wide
12G thickness

CAWARNING
plate size 3" x 7"
plate size 1 1/2" x 7 1/4"
Galvanized finish Steel
53 C/S Steel Wheels
57 C/S Steel Wheels
 305 track
$ 159.99
$ 144.99
 6' $ 199.99 94" $ 249.99
CAWARNING
CAWARNING
Below lengths add approx freight for shipment
Freight charge will be added for Long track
13 FOOT freight delivery $ 500.00
19 FOOT freight delivery $ 1000.00
13' $ 399.99
19' $ 599.99

1500 lb door max
Wheel Diameter = 3"

1500 door lb max
CAWARNING
No plate - for metal doors
Bolt Length 5 11/16"
Diameter 5/8"
plate size
top 1 1/2" x 9"
side 1 1/2" x 6 1/2"

56CX/S
52 C/S Steel Wheels

$ 129.99
CAWARNING


Quantity
CAWARNING
$ 159.99 ea.

Track and Supports 305 track
Track can also be attached directly by drilling through the track
Maximum spacing 3 feet between brackets
1A / 305
1A / 305 / LC
3A / 305
1AX / 305
Sidewall Bracket
single track
Closed Sidewall bracket
with Track Stop
Top Mount
Overhead Bracket
 Sidewall Bracket
for Joining 2 tracks
$ 39.99
 $ 79.99
$ 109.99
 $ 54.99

1 RH & 1 LH needed
CAWARNING

border=
click above for larger image		   width=
  4A / 305   4R/305
  Top Mount
Overhead Bracket
Track must be fed into bracket		   Suspended
Overhead Bracket
  $ 149.99   $ 99.99

CAWARNING

D
height= PC Henderson
4400 LB
TRACK AND ROLLER SETS

PC 307


PC 307 Hardware is Special order

general lead time for these items is 2-3 weeks



A = 8 7/16"
B = 15"
C = 3"
D = 3.46"
F = 2 3/4" MAX
 outside
wheel/wheel 2.165"
307 - Up to 4400 pounds
width=
width=
Fits door 2 3/4
 width=
width=
307 Track
4 3/32" tall
2 7/8" wide
6G thickness

Galvanized finish Steel
53 FJ/S ROLLER
   No plate - for metal doors
Wheel Diameter = 3 7/16"
4400 LBS
Bolt Diameter 13/16"
9.8' - $1100.00 + $ 500.00 freight

CAWARNING
4400 lb max
 56FJ/S . - Bolt Length 3 3/8" - $ 439.99
56FJX/S - Bolt Length 5 1/2" - $539.99
$ 499.99
CAWARNING



CAWARNING

Track and Supports 307 track
Track can also be attached directly by drilling through the track
Maximum spacing 3 feet between brackets

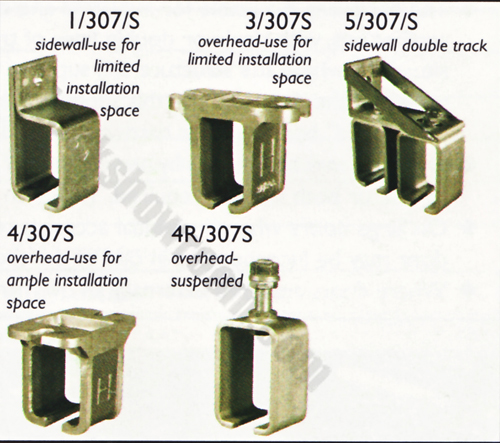

307 - Hangers
1 / 307 / S
 Single Sidewall
$ 119.99
3 / 307 / S
 Single Overhead
$ 159.99
4 / 307 / S
 Single Overhead
$ 159.99
4R / 307 / S
 Single Suspended
$119.99
5 / 307 / S
 Double Sidewall
$ 349.99

CAWARNING







E
PC Henderson

Centerfold Application

></td> <td width= width=
width=
61 roller for Center- folding Doors
part # Track Weight Price
61K/S 290 80 pounds $ 89.99
61A/S 301H 120 pounds $ 149.99
61C/S 305 150 pounds $ 219.99

CAWARNING

290 dimensions page 301 dimensions page 305 dimensions page






F
Industrial Sliding Door Track
for Round the corner Applications

{-------------------------------- - -30" - - -------------------------------- }
30" from bend to wall


Track Curve

Radius Corner Top Track
290 Track - 600K
150 lb max
$ 129.99
301H Track - 600BH
400 lbs max
$ 219.99

Weight limit will depend on Hanger/Application
Max weight with 4 Wheel Roller
Must use Steel Wheels

Order Track Curve


CAWARNING
301 Dimensions 290 Dimensions page
width= name=

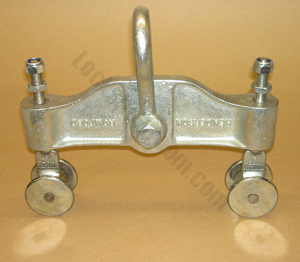

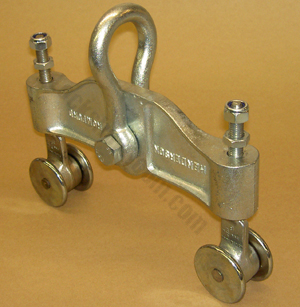

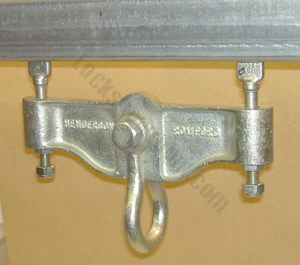

58K/N
Cable/Curtain Hanger for 290 track
44 lbs max ... $40 ea






CAWARNING

Offset Folding Doors

Best for Exterior Applications
Top Rollers
for Off-Set Folding and Round the Corner Applications
pchenderson 62A
pchenderson 63A
pchenderson 65
62A roller/hinge
dimensions
301H 150lbs
$ 129.99
63A roller
dimensions
301H 150lbs
$ 119.99
65 Hinge
 Cast Aluminum
62K roller/hinge
dimensions
290 80 lbs79.99
CAWARNING
63K roller
dimensions
290 80 lbs
$ 69.99

For use on last door

CAWARNING

$ 24.99
CAWARNING



97 Steel Bottom Guide Track 8'
dimensions

1 1/2" tall x 1 1/16" wide
$ 99.99
89 Steel Bottom Guide Track 8'
dimensions
1 " tall x 1" wide
$ 79.99

CAWARNING

Bottom Guides
for Off-Set Folding and Round the Corner Applications
pchenderson 67
Brass Guide / Cast Iron Hinge

Brass Guide / Cast Iron Hinge

67/97 bottom guide/hinge
dimensions
$ 119.99
Quantity

68/97 bottom guide
dimensions
$ 39.99
601/97 Curved Bottom Tack
$ 149.99
67/89 bottom guide/hinge
dimensions
$ 59.99
Quantity

CAWARNING
68/89 bottom guide
dimensions
$ 39.99
CAWARNING
601/89 Curved Bottom Tack
$ 129.99
CAWARNING


more information

301H
More Information and Layout

290
More Information and Layout




width= width=
Folding door with custom butt hinge application,
top mounted flush bolt and hinge/handle		 Painted 65 Hinges with flush bolt and hinge/handle




  A C D E

Axle Centerline
Wheel Centerline
Wheel Diameter
Wheel Thickness
290 2" .90" 1 7/8" .159"
301 3.335" 1.39" 2 7/32" .231"
305 3 3/8"   3"
307 5 7/16"   3 7/16"

PDF pages for more roller information

Matching rollers to an existing (non-PcHenderson) track
is very difficult and often unsuccessful

Please verify all dimensions
25% minimum restocking on all returns

Pc Henderson Complete Hardware Specs Pages
Not all items available in US





107 Wall Mounted Stop
414 Flush Pull

413 Flush Pull
463 Bow Pull
31S wall Mounted Guide
approx size7.5 x 2
dimensions page		 approx size 5.25 x 2.5
dimensions page		 appox. size 6" x 3.75"
dimensions page		 appox. size 6" x 2"
dimensions page		 approx Size 5 3/8" x 2"
dimensions page
$ 59.99 $ 29.99 $ 99.99 $ 27.99 $ 39.99

Quantity
CAWARNING

Quantity
CAWARNING

Quantity
CAWARNING

Quantity
CAWARNING
Quantity
CAWARNING





PDF Centerfold PDF Offset PDF Folding



Pocket / Sliding / Folding
Industrial Sliding Door Track and Rollers
Max Weight
Sliding Door
pounds
Track
Folding Door
Standard
90° Curve
Link to more
Information
Steel
Stainless
Height
Width
400
x
x
1 3/4"
1 7/16"
x
x
1000
x
2 5/8"
2 5/32"
x
x
4400
x
4 3/32"
2 7/8"

ORDER TOLL FREE (888) 915-5223

Woodward's Hardware
2343 N. Tustin Ave, Santa Ana, CA 92705
(714-541-5291 FAX (714)541-2123
