Sliding Door Rollers
Bottom Mounted

Call Toll Free
(888) 915-5223

visit our main site
Woodwardsace.com
for complete door and cabinet hardware selection


Replacement Parts
Rollers and guides
Door Track and Roller Sets Sliding Door Locks and Decorative Trim Weather-Stripping
for Sliding Doors
Passage / Privacy Doors Keyed Locks

Closet Door Rollers

Bi-Pass Doors
Single Wheel
2 Wheel

Pocket Door
CenterHung Rollers

Mirrored Doors
Metal Frame Rollers
Metal Frame Guides
Bottom Rollers

Bifold Doors
Bracket
Pivots
Guide Wheels
Pivot Caps
Pivot Pins
Snuggers


Door Guides
Pocket Door
Wall Mounted door
Bi-Pass- multi-door
FloorMounted Guides



Visit our Terms Page first, for help in selecting your roller
click on images for larger view

Heavy Die Cast Housing
Part # Screw Hole
Centers
Wheel
size
Wheel
Shape
Price
SH18 3 5/8" 3/8" x 1 3/4" groove $ 29.99
Quantity
1 only - fits Grant 18
dimensions
Part # Screw Hole
Centers
Wheel
size
Wheel
Shape
Price
SH14 5 1/8" 1/2 x 2 3/4" groove $ 34.99
Quantity

1 only - fits Grant 14
dimensions

Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price
16769 1 1/2'' 11/16 '' Steel grooved $ 18.99
Quantity
package of 2
Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price
16770 1 7/8 '' 1 '' Steel grooved $ 29.99
Quantity
package of 2
Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price

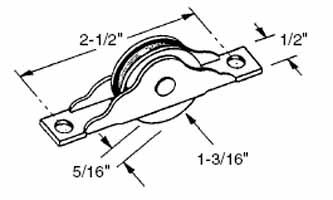

16771 2 1/2 '' 1 3/16'' Steel grooved $ 14.99
Quantity
package of 2
Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price
16772 2 1/4 '' 1 3/8'' Steel grooved $ 29.99
Quantity
package of 2
Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price
430NSTL 2 5/16 '' 1 3/8'' neoprene flat $ 29.99
Quantity

color image
package of 2
Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price

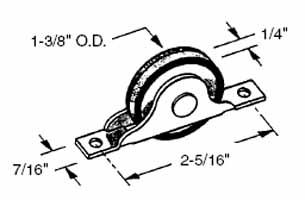

16774 2 5/16 '' 1 3/8'' Steel grooved $ 29.99
Quantity
package of 2
Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price
16775 2 '' 1 3/16'' Round nylon $ 19.99
Quantity
package of 2


Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price

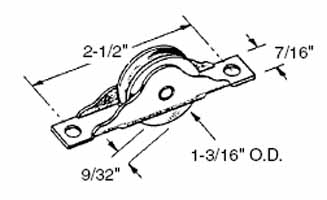

16777 2 1/2 '' 1 3/16'' grooved bronze $ 29.99
Quantity
package of 2

Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price
16762 1 3/8'' 5/8 '' Flat Steel $ 12.29
Quantity

Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price
16764 1 9/16'' 3/4 '' Flat Steel $ 27.99
Quantity

POCKET DOOR HARDWARE Steel Body - Nylon Wheel
Part # Hole
Centers
Wheel
Diameter
Wheel
Shape
Price
SH50454 2 7/16" 1 " Nylon groove 14.99

pack of 1



We offer the wide selection of rollers.
To check against your roller: match up the screw holes, wheel size, overall bracket dimensions and any other holes or measurements listed from your assembly to the ones above.
In normal circumstances if the dimensions do not match the wheels will not work.

Visit our Questions and Terms page for more help in selection.

It is also very difficult to guess at a missing wheel based on track profile/size.
In the case of a missing roller, If you live in a tract home your neighbor may have the same setup so you can measure from his.

Some wheels are trapped and can not be removed. The easiest way to remove the old assembly is to cut approx. 3-4 inches of track and the end against the wall, this will allow the wheel to be taken out. The piece that was cut out can be screwed back up to complete the track.

We do offer complete units with track and roller sets for doors up to 4000 pounds
Many items are available for pick up at our location in Orange County California.

We keep a large selection of stock on hand. Most units ship same day via USPS Priority Mail and you receive them in 3-4 days.

We have recently expanded our selection of replacement rollers and are in the process of increasing inventory
some items may have a longer lead time - you will be contacted with any possible delays


Order the items above through our online shopping cart for the fastest service.
Larger orders will ship UPS and have a slightly longer shipping time. Next day and Second day shipping options are available at a higher shipping cost.

All returns are subject to a 25% restocking fee, you must call for an RGA before shipping any returns



If you have any questions
ORDER TOLL FREE (888) 915-5223

Woodward's Hardware
2343 N. Tustin Ave, Santa Ana, CA 92705
(714-541-5268 FAX (714)541-2123
