Tiger / Fenestration
Stainless Track and Rollers

Call Toll Free
(888) 915-5223
E-Mail

Questions? visit our FAQ page

Replacement Parts
Rollers and guides		 Door Track and Roller Sets Sliding Door Locks and Decorative Trim Weather-Stripping
for Sliding Doors
Passage / Privacy Doors Keyed Locks


Aluminum Door Track Systems
Tiger / Fenestration ALU 40
88 lb. Aluminum 		Tiger ALU 80
176 lb. Aluminum 		Tiger ALU 135
330 lb. Aluminum 		Soft Close for
sliding doors
Stainless Steel Door Track Systems
Tiger T 250
80 lb. Stainless 		Tiger T 300
165 lb. Stainless 		Tiger T 400
440 lb. Stainless 		Tiger T 480
800 lb. Stainless 		Tiger T 560
1300 lb. Stainless
Tracks over 8 feet must ship by common carrier and will have extra freight added
All Weights listed are per Door - using a Pair of Rollers

Door Track Systems

Standard Duty
Pocket Door Track
Tiger Door Track
Round Stainless Rail
Open Rail
Bottom Track Systems
Barn Door Rail Track

Pc Henderson
Industrial Track
Flexirol System
Pacer System

Specialty Applications
Minimum Top Clearance
Full Access Bi-Fold



Replacement Hardware

Closet Door Rollers

Bi-Pass Doors
Single Wheel
2 Wheel

Pocket Door
Center Hung Rollers

Mirrored Doors
Metal Frame Rollers
Metal Frame Guides
Bottom Rollers

Bi fold Doors
Bracket
Pivots
Guide Wheels
Pivot Caps
Pivot Pins
Snuggers

A

 ALU40 track
Aluminum Track and Rollers
88 lbs door max



approx. size
26mm x 25mm


ALU40
Aluminum Top Track 8'
Size
Quantity


Dimensions Page
14 ALU 40 A
Door Hanger Kit
$ 70.00

Quantity
Kit Includes
( 2 ) 260 Nylon Carriers
( 2 ) 8069 Brackets
( 1 ) 114001 Rubber Wall Stop
( 1 ) 15001 ABS Bottom Guide
( 2 ) 115039 Track Stops
Optional Wall Mount Bracket 81069
14" spacing max
Fenestration Bracket $ 7.00 ea

Quantity



B

 Tiger/Fenestration
ALU80 track
Aluminum Track and Rollers
176 lbs door max

tiger alu80
approx. size
31mm x 27mm


ALU 80
Aluminum Top Track 8'
SIZE
Quantity

Dimensions Page
14 ALU 80 A
Door Hanger Kit
$ 85.00

Quantity
Kit Includes
( 2 ) 260 Nylon Carriers
( 2 ) 8069 Brackets
( 1 ) 114001 Rubber Wall Stop
( 1 ) 15001 ABS Bottom Guide
( 2 ) 115039 Track Stops
Optional Wall Mount Bracket 81069
14" spacing max
$ 7.00 ea

Quantity
All dimensions on the site are approx, please call to verify any critical measurements
We recommend to never Prepare a job site without having the parts and take no responsibility if you do.

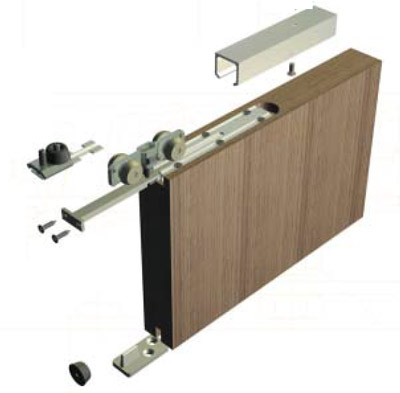

ALU80MF KIT $ 150
Allows the door to be mounted with virtually 0 space between the track and top of door
1 1/2" thick door min - #120 LB MAX

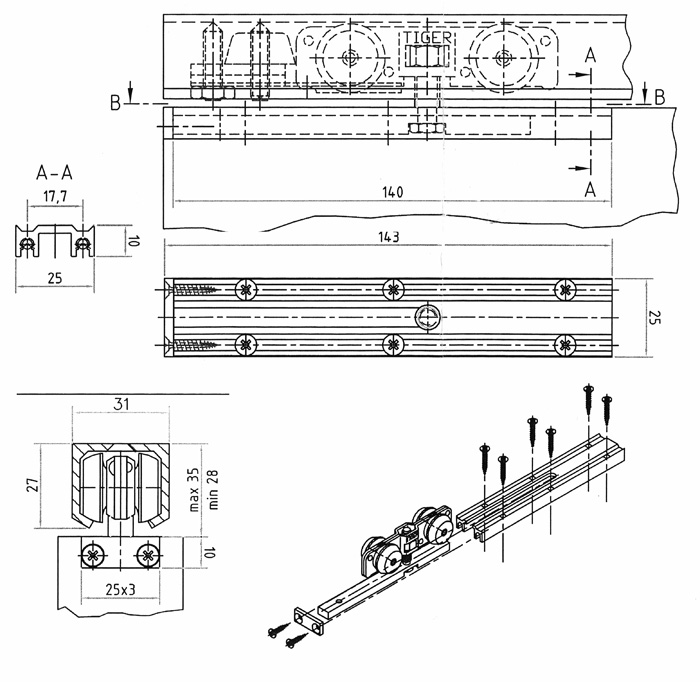

TIGER MFKIT zero clearance door track

AL80 MF hardware Kit

order ALU 80 track above

Quantity

Kit includes
2 rollers with mortise brackets
2 clip stops
1 floor guide

Dimensions Page
Click on above for larger image
more zero Clearance options Available on or KNCrowder Page
C Tiger/Fenestration
ALU135 Track
Aluminum Track and Rollers
330 lbs door

approx. size
41mm wide x 39mm tall
ALU135

Aluminum Top Track


Quantity
Track longer than 8 foot
Add $ 250 shipping charge
48 states

12' $ 320.00

14 ALU 135 A
Door Hanger Kit
$ 200.00

Quantity
Kit Includes
(2) R410 carriages,
galvanized steel with ball bearings,
and very quiet, durable PETP plastic rollers		 (2) 8129
top-mounted carrying brackets
use: to attach carriage to panel
(2) 199139
track stops with catch & rubber bumper		 (1) 114001
door / stile stop, rubber
(1) 15131-
Floor guide pin, ABS plastic
Dimensions Page
D

ALU 100

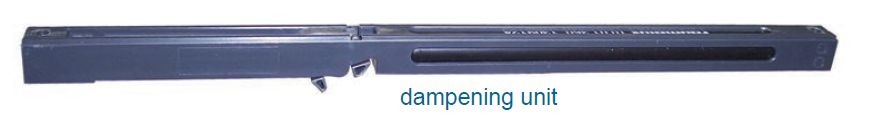

Soft Close Pocket Door Hardware



• Easily opens and closes sliding doors – low force is needed.
Specify unit Damper on 1 side or Both


• Safety – helps prevent accidents such as fingers being
slammed in closing door

• Low noise – doors will not slam on closure.

• Low wear on door, frame and hardware – from low-force use.


• For Doors up to 176 lbs

6 foot track and rollers
with stop at one end $ 400.00

Track Size
Soft Close
Quantity


see it in action

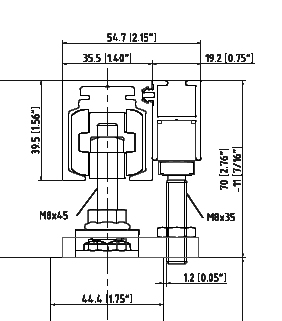

Soft Close Door kit includes the following

approx 3/4" wide x 1 1/4" tall
approx 1 3/8" wide x 1 1/2" tall
(1) Carriage Kit (1) side-mount bracket
for Damper		 Track 6 or 8 foot activator bracket 1 or 2

1 or 2

Stainless Steel Door Track and Rollers

E Tiger/Fenestration
Stainless Steel Door Track and Rollers
T250 System
80 pounds

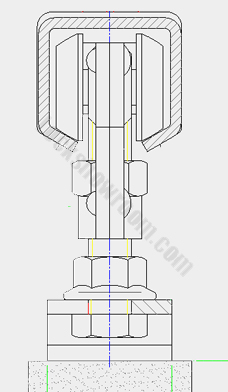

tiger stainless steel
approx. size
25mm x 25mm

Dimensions Page


Stainless track stop

T250 - Stainless Steel Track


Quantity

Track longer than 8 foot
Add $ 250 shipping charge
48 states - commercial address
12 FOOT $ 250
20 FOOT $ 475


A250-61

Stainless Steel trolley with
quiet Top Grade PETP Plastic Wheel

$ 100 ea (2 needed per door)


Quantity
12066
track stop with Rubber Bumper
$ 25.00

QTY
Stainless hanger bracket
Standard Hanger included with roller above		 stainless guide
BGSS Stainless Door Guide $ 48.00
QTY
Single Door System Only - Not to be used on Double Door Systems


Tracks over 8 feet must ship by common carrier and will have extra freight added

F Tiger/Fenestration
Stainless Steel Door Track and Rollers
T300 System
165 pounds

tiger stainless steel
approx. size
30mm W X 28mm Hl

Click image for Dimensions

T300-61
Tiger Stainless Track T 300


UPS Sizes
Quantity
Track longer than 8 foot
Add $ 250 shipping charge
48 states - commercial address
12 foot $ 375.00
20 foot $ 720.00

Stainless Door Hanger
Click image for Dimensions		 Stainless track stop
Click image for Dimensions

T 310-61
Stainless Trolley x PEPT Plastic Roller
Stainless Steel Ball Bearings
$ 100 ea (2 needed per door)

QTY

12066
track stop with Rubber Bumper
$ 25.00
QTY
Stainless hanger bracket
Click image for Dimensions		 stainless guide
Standard Hanger included with roller above BGSS Stainless Door Guide $ 48.00
system information
QTY
Single Door System Only - Not to be used on Double Door Systems

Tracks over 8 feet must ship by common carrier and will have extra freight added

G

Tiger/Fenestration
Stainless Steel Door Track and Rollers
T400 System
stainless steel track
approx. size
40mm W X 38mm H

Dimensions Page

stainless Steel Roller
click on image
for dimensions 		stainless steel rollers
click on image
for dimensions

Quantity
Track longer than 8 foot
Add $ 250 shipping charge
48 states - commercial address
12 foot $ 600.00
20 foot $ 720.00

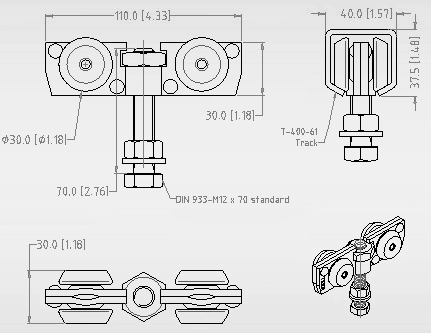

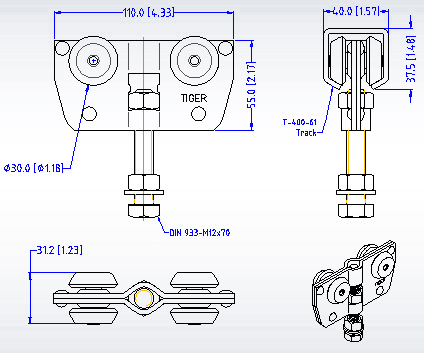

GAS 400-61 GKS400-61-MA
Marathon System		 G400-61-MA
Marathon System
PEPT Nylon Roller
330 lb doors
Includes 8136 brackets		 Stainless Steel Roller
380 lb doors
Includes 8136 brackets		 Stainless Steel Roller
440 lb doors
Includes 8136 brackets

$ 220.00 ea


Quantity

$ 380.00 ea.
Quantity
$ 500.00
Quantity

click on image
for dimensions
click on image
for dimensions
stainless steel track hanger
click on image
for dimensions
12136
Stainless track stop with rubber bumper
$ 45.00
Quantity
9136
Sidewall bracket $ 70.00
special order 8 week lead time
8136 |
Standard Hanger
included with Rollers
max weight is 275 lbs per 3 feet of track

Recommended Stainless Steel Track Hangers
2136 3136 40136 4136 45136 5136
Wall Bracket Ceiling Hanger Ceiling Hanger
Height Adjustable
 Clamp Hanger
requires extra space		 Adjustable Clamp Spicing Clamp
For joining 2 tracks
$ 55.00 $ 65.00 $ 65.00 $ 45.00 $ 70.00 $ 50.00

QTY

QTY

QTY

QTY

QTY

QTY
Max Spacing is 30" More Hanger Information

Stainless Bottom Guide and Channel
18136 guide roller
$ 45.00

SL 203.144.63
guide track
Stainless Steel Bottom Track 8'
$ 220.00


H

Tiger/Fenestration
Stainless Steel Door Track and Rollers
T480 System

tiger stainless steel
approx. size
48 mm wide X 47mm tall

Dimensions Page



T480 - Stainless Steel Track
880 lbs Door weight MAX


Quantity
Track longer than 8 foot
Add $ 250 shipping charge
48 states - commercial address
12 foot $ 700.00
20 foot $ 2000.00

fenestation hardware

fenestration hardware

 fenestration roller

ZKL 480-61
550 pounds

Stainless Body
PEPT Plastic Wheels
$ 400 ea (2 needed per door)
Quantity

ZKS 480-61
660 pounds

Stainless Body
Stainless Wheel
$ 400 ea (2 needed per door)

Quantity

ZKS 480-61-MA
800 pounds

Stainless Body
Stainless Wheel
$ 750 ea (2 needed per door)

Quantity

Stainless hanger bracket
Standard Hanger
included with roller above
12146
track stop with Rubber Bumper
$ 55.00

Quantity
8146 9146
Sidemount Bracket option
$ 100.00

T480 - Max track weight is 450 lbs per Meter of track

Recommended Stainless Steel Track Hangers For T480
stainless steel track hanger stainless steel track hanger stainless steel track hanger stainless steel track hanger stainless steel track hanger stainless steel track hanger
2146 3146 40146 4146 45146 5146
Wall Bracket Ceiling Hanger Ceiling Hanger
Height Adjustable
 Clamp Hanger
requires extra space		 Adjustable Clamp Spicing Clamp
For joining 2 tracks
$ 65.00 $ 70.00 $ 65.00 $ 45.00 $ 80.00 $ 55.00

QTY

QTY

QTY

QTY

QTY

QTY
Max Spacing is 30"

I

Tiger/Fenestration
Stainless Steel Door Track and Rollers
T 560 System

tiger stainless steel
approx. size
56mm wide X 58mm tall


T560 Stainless Steel Track
1320 lbs MAX

5' $ 400
6' $ 700
7' $ 800
8' $ 900
12' $ 1200
19' 8" $ 3200
fenestation hardware

STAINLESS STEEL ROLLER

 stainless steel door track roller

ZKL 560-61
880 pounds

Stainless Body
PEPT Plastic Wheels
$ 550.00 ea (2 needed per door)

XKS 560-61
1100 pounds

Stainless Body
Stainless Wheel
$ 800.00 ea (2 needed per door)

XKS 560-61-MA
1320 pounds

Stainless Body
Stainless Wheel
$ 900.00 ea (2 needed per door)

Stainless hanger bracket
Standard Hanger
included with roller above
12156
track stop with Rubber Bumper
$ 69.00 		8156 9156
Sidemount Bracket option
T560 - Max track weight is 825 lbs per Meter of track

Recommended Stainless Steel Track Hangers
stainless steel track hanger stainless steel track hanger stainless steel track hanger stainless steel track hanger stainless steel track hanger stainless steel track hanger
2156 3156 40156 4156 N/A 5156
Wall Bracket Ceiling Hanger Ceiling Hanger
Height Adjustable
 Clamp Hanger
requires extra space		 Adjustable Clamp Spicing Clamp
For joining 2 tracks
$ 85.00 $ 95.00 $ 90.00 $ 55.00   $ 80.00
Max Spacing is 30"
Tracks over 8 feet must ship by common carrier and will have extra freight added

All dimensions on the site are approx, please call to verify any critical measurements
We recommend to never Prepare a job site without having the parts and take no responsibility if you do.
