600 Pacer
Door Tracks and Rollers

Call Toll Free
(888) 915-5223

visit our main site
Woodwardsace.com

for complete door and cabinet hardware selection

Door Guides

Sliding Door __ Flush Pulls
Passage/ Privacy Doors

Pocket Door
Replacement Rollers

Keyed Locks for
Sliding Doors

Sliding Door
Weather-stripping

FAQ Help Page Door Track and Roller Sets E-mail Us

PC Henderson
Industrial Door Track Industrial
look
Exposed Hangers
Curved Track
up to 4400 lbs

Door Track and Rollers
Standard Duty

Door Track for Pocket and Bi-fold
Interior Applications
Pocket Door Frame Kits
up to 440 lbs

Flexirol
Heavy duty track

Folding, stacking and
multifunctional / stacking doors

Up to 1100 lbs

Stainless Steel
Round Rail

Exposed track for
glass and wood doors

Specialty Applications
Min Clearance track
Full Access Bi-fold

Open Rail System
Exposed track and Rollers

Tiger Brand
Track and Rollers
Specialty Track
a Favorite of Architects




Pacer centerfold PDF Pacer folding PDF Pacer sliding PDF
Pacer Enfold Offset

$ 10.00 shipping on all order with track 8' or shorter

Pacer and 600 track offers a lighter option of Flexirol for a wide variety of applications
Straight Sliding up to 440 pounds , Folding (either center hung or offset), Pivot doors,

Contact us with your needs and we can help in designing your system


All application on this page use the following tracks - Guides and track support Below
pacer track
pacer hanger
pacer track joiner

600 A track

6' - $ 180.00
8' - $ 240.00
10' - $ 325.00
16.5' - $500.00


Quantity

Track longer than 8' will ship by truck
min shipping charge $ 250
1B
Optional Wall Mount Bracket
$ 6.50
1BX
Wall Mount Joiner Bracket

$ 16.00


3/4" tall x 13/16" outside
106N / 94 GUIDE $ 26.00
with Nylon Guide

Quantity
94 Aluminum
Bottom Guide Track
94A

Quantity
21N/94
Guide for Endfold
$ 33.00
106R / 94 GUIDE $ 16.00
with Metal Guide

Quantity
94 Brass
Bottom Guide Track $350.00


PACER DOOR ROLLER
57 B Hangers
for Straight Sliding application
( pocket doors )
2 per door 440 lbs

$ 80.00 ea

Quantity


601 P
Track Stop
$ 20.00

Quantity


Pacer for Centerfold and Straight Sliding Wood Doors
Center Hung
Interior Aplications
165 Max Door Weight Centerfold
440 Max Door Weight Sliding / 2 hangers
Doors Hinge to each other
Odd number of doors
for floating panels
3,5,7,9 leaves
1/2 door required to have
panels fixed to wall
3.5 , 5.5, or 7.5 leaves
2' 11" Max Door Width
Door thickness 1 3/8" - 1 15/16"
Requires
Bottom Guide Track
Application

Top Hung Pacer gear and fittings for center folding wood partition doors. Leaves are hung centrally and can fold to one or both sides. For Applications hinged to the jamb, 3 1/2, 5 1/2, 7 1/2 leaves can be used with the half leaf hinged to the jamb. For best operation of floating units 5,7 or 9 leaves should be used. Any access door should be hinged separately to the jamb

centerfold application

61B/4 Hangers
for Centerfold application
( above )
165 lbs


$ 105.00 ea
All dimensions on the site are approx, please call to verify any critical measurements
We recommend to never Prepare a job site without having the parts and take no responsibility if you do.


Pacer for Endfold Centerhung Wood Doors
Center Hung
Requires
Bottom Guide Track
165 Max Door Weight Endfold
Doors Hinge to each other
4' Max Door Width
Door thickness 1 3/8" - 1 3/4"

Application

Top hung Flexirol gear and fittngs for end folding wood partision doors. Leaves can be hung to the left or right of an opening or hung as floating units

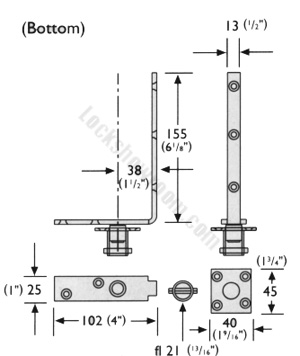

21/B/P Pivot Set
$ 105.00
paser for folding doors
21 B/4
Hanger for Endfold
$ 125.00
21 BO/4
offset pivot for meeing doors
Hanger for Endfold
$ 365.00

All dimensions on the site are approx, please call to verify any critical measurements
We recommend to never Prepare a job site without having the parts and take no responsibility if you do.

Flush Bolts and Hinges for folding doors

Pacer for Endfold Offset
Exterior Wood Doors
All Hardware
Silver Finish Only
Exterior Aplications
offset to allow for weatherstripping
143 Max Door Weight
Doors Hinge to each other
Even number of Doors
with no Exterior
Entrance
Odd number of doors
with last door swinging
3' Max Door Width
Door thickness 1 11/16" - 2 1/4"
Requires
Bottom Guide Track
or guide threshold



pacer_endfold

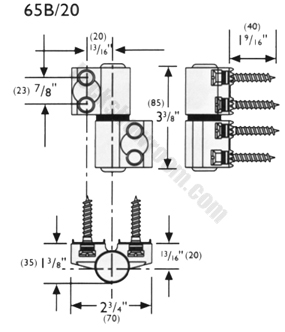

65B/20 Hinges
$ 196.00 ea
half hinge $ 100.00
Installation information
$ 290 + hinge
$ 110.00 + hinge
$ 90.00 + hinge




with 94 bottom guide track

Bottom Guide Pin

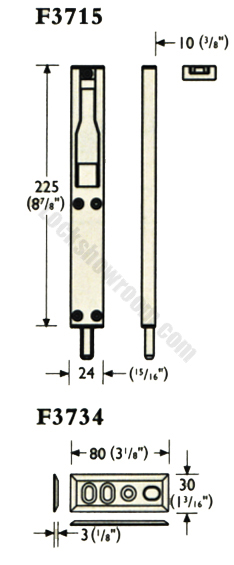

F3715 - Flush Bolt $ 120.00
F3734 - Strike $ 25.00
68BA/110 for ues with 1/2 hinge $ 35.00
67BA/150 for use with full hinge $ 50.00

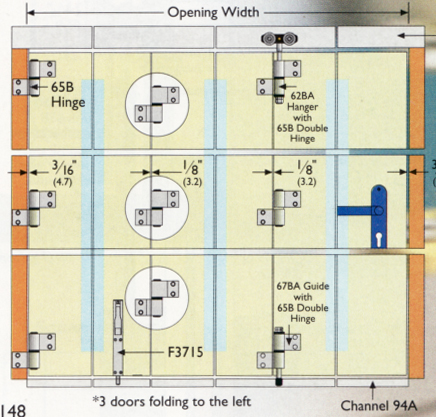

Odd Door Layout

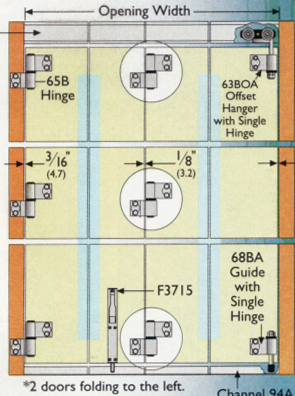

Even Door Layout







All dimensions on the site are approx, please call to verify any critical measurements
We recommend to never Prepare a job site without having the parts and take no responsibility if you do.
