J200
Bi Fold Track Kit
|
125# Door Max Leaf Weight |
2 Door Components |
36" Max Door Width |
 |
1 - 200 Track
1 - Top Pivot set
1 - 2002 Hangers
1 - Bottom Pivot set
1 - 1712 Adjustment Wrench
Standard Butt Hinges required but not included
Instuctions |
2 Door System
4' track $ 119.99
 |
4 Door System
94" Track $ 239.99
 |
|
|
J100
Bi Fold Track Kit
|
75# Door Max Leaf Weight |
2 Door Components |
24" Max Door Width |

|
1 - 100 Track
1 - Top Pivot Set
1 - 1125 Door Hanger
1 - 1155 Track Stop
3 - 1606 Hinges
1 - Bottom Pivot set
1 - 1712 Adjustment Wrench
Instuctions |
2 Door System -
48" track $ 79.99
 |
4 Door System
94" Track $ 119.99
 |
|
|
J111
Bi Fold Track Kit
IN STOCK
|
50# Door Max Leaf Weight |
2 Door Components |
24" Max Door Width |
 |
1 - 111 Track
1 - 118PIVS Top Pivot Set
1 - 1020 Door Guide Hangers
1 - 1155 Track Stop

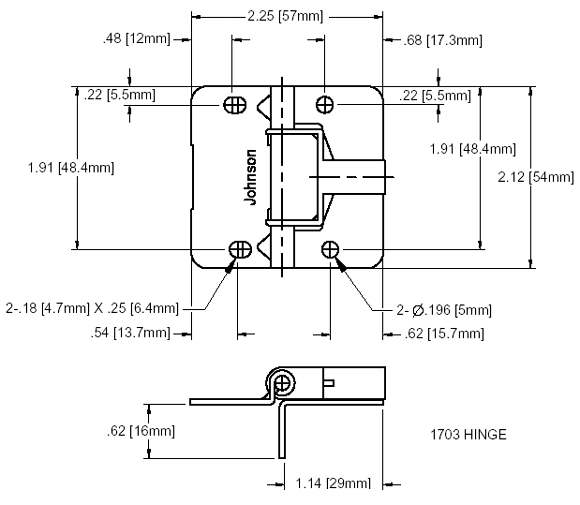

3 - 1703 Hinges
1 - Bottom Pivot set
1 - 1712 Adjustment Wrench
Instuctions |
2 Door System
48" track $ 59.99
 |
4 Door System
2 - 48" tracks $ 99.99
 |
|
|
KT 15
Bi Fold Track Kit |
60 # Door Max Leaf Weight |
2 Door Components |
24" Max Door Width |
 |
1 KT 40 track
1 KT 15 roller
1 Top Pivot Kit
1 Bottom Pivot Kit
Hinges not included |
2 Door System
4' track $ 75
 |
4 Door System
94" track $ 150.00
 |
|
|
Pacer
Bi Fold Track Kit |
165 # Door Max Leaf Weight |
2 Door Components |
36" Max Door Width |
 |
1 600A Aluminum Track
1 21B/P Pivot Kit
1 21B/4 Roller
1
21N/94 bottom guide
1 94A bottom guide channel |
2 Door System
1
6' track $ 589.99
 |
4 Door Components |
4 Door System
(2) 6' track $ 932

|
2 600A Aluminum Track 6'
2 21B/P Pivot Kit
2 21B/4 Roller
2
21N/94 bottom guide
2 94A bottom guide channel 6'
Hinges and Flush Bolts not included |
Pacer System Page |
|
301H
Bi Fold Track Kit |
150 # Door Max Leaf Weight |
2 Door Components |
36" Max Door Width |
 |
1 PC 301H Galvinized Steel Track
1 PC 21AP Pivot Kit
1 PC 21AS roller
1
PC 21R94 bottom guide
1 94A bottom guide channel
Standard Butt Hinges required but not included
301 Endfold Information Sheet
Industrial Track Page |
2 Door System
1
6' track $ 555.00

|
4 Door System
(2) 6' track $ 1110.00
 |
|
|
Flexirol
Bi Fold Track Kit |
275 # Door Max Leaf Weight |
2 Door Components |
48" Max Door Width |
 |
1 PC 550 Track
1 PC 21/550 Pivot
1
PC 556/21 Roller
1
PC 21/R 94 Bottom Guide
1 94A bottom guide channel
Flexirol Door System Page
Standard Butt Hinges required but not included |
2 Door System
(1) 6' track $ 1125.00
 |
4 Door System
(2) 6' track $ 2250.00
 |
|
|
Tangent Offset Folding System |

offset system using 65 surface mount hinges |
 |
 |
surface mount 65 hinges are used
on all doors and to attach door to opening

Dimensions
|
2 Door Components |
3 |
65 Hinges |
Door 1 to Wall |
3 |
65 Hinges |
Door 1 to Door 2 |
1 |
63 A roller |
Top End of Door 2 |
1 |
68/97 Guide |
Bottom End of Door 2 |
1 |
301H |
Top Track |
1 |
97 |
Bottom Guide Channel |
|
|
|
|
4 Door Components
all doors 1 Derection |
3 |
65 Hinges |
Door 1 to Wall |
3 |
65 Hinges |
Door 1 to Door 2 |
1 |
62 A roller |
Top End of Door 2 |
1 |
67/97 Guide |
Bottom Door 2 to Door 3 |
1 |
63 A roller |
Top Door 2 to Door 3 |
1 |
65 Hinge |
Middle Door 2 to Door 3 |
1 |
301H |
Top Track |
1 |
97 |
Bottom Guide Channel |
1 |
63 A roller |
Top End of Door 2 |
1 |
68/97 Guide |
Bottom End of Door 2 |
1 |
301H |
Top Track |
1 |
97 |
Bottom Guide Channel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tangent Offset Folding System Parts |
