Stainless Rail System
with Soft Close both ends
SFT-60 Top Mount
soft close rail






Dimensionsround rail dim

Stainless Steel Sliding Track Hardware System

For Sliding Panels up to 176lbs.

Configurations:
 Single
Installations:
 Side Wall Mount (only)

Features:
Made of 304 stainless steel
Nylon coated stainless steel for smooth operation
Track installed Soft Close at both ends of door
176lbs panel capacity
5 year warranty

Standard Kit Sizes
Part Number
Track Length
Opening Width
 Price
SFTW60/6
78" 3/4
 less 36"
 $ 379.99
SFTW60/8
98 7/16"
more 36"
 $ 499.99
Instructions




Finishes:
 Brushed Stainless Steel (standard) Only








Stainless Rail System
with Soft Close both ends
SFT-100 Face Mount
soft_close_Stainless






Dimensions
round rail dimentions

Stainless Steel Sliding Track Hardware System

For Sliding Panels up to 176lbs.

Configurations:
 Single
Installations:
 Side Wall Mount (only)

Features:
Made of 304 stainless steel
Nylon coated stainless steel for smooth operation
Track installed Soft Close at both ends of door
176lbs panel capacity
5 year warranty

Standard Kit Sizes
Part Number
Track Length
Opening Width
 Price
SFTW100/6
78" 3/4
 less 36"
 $ 479.99
SFTW100/8
98 7/16"
more 36"
 $ 599.99
Instructions





Finishes:
 Brushed Stainless Steel (standard) Only













All systems are hardware only- No Doors included - lead time 3-4 weeks

PC Stainless Rail System
W60

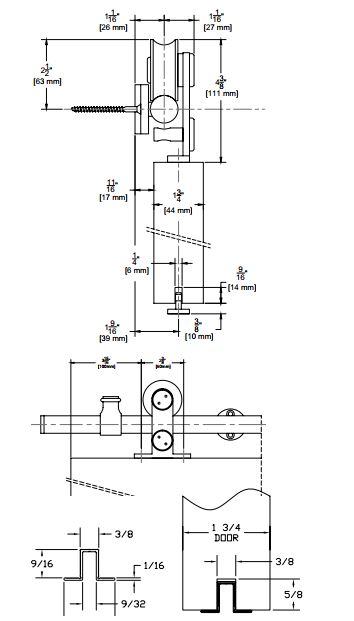

Dimensions

Stainless Steel Sliding Track Hardware System

For Sliding Panels up to 176lbs.

Configurations:
 Single
Bi-Parting

Installations:
 Side Wall Mount (only)

Features:
 Made of 304 stainless steel
Nylon coated stainless steel for smooth operation
176lbs panel capacity
5 year warranty

Standard Kit Sizes
Part Number
Track Length
Opening Width
 Price
W60_/6
78 3/4"
 less 36"
 $ 395
W60_/8
98 7/16"
more 36"
 $ 445

  See the Ordering information on the bottom of this page
this information will insure proper track set-up

Opening Size
Door Size
Overlap Closed
Overlap Open
Select Finish
Quantity



Finishes:
 Brushed Stainless Steel (standard)
Polished Stainless Steel (add 10%)
Satin Bronze Podwer Coated Stainless Steel (add 30%)
 Satin Black  Powder Coated Stainless Steel  (add 30%)

W60 Kits Include:
 1 Stainless Steel Track
   Stainless Steel Wall Brackets
2 Stainless Steel Hangers
1 Stainless Steel Guide
2 Stainless Steel Stops Mounting Hardware



Instructions Dimensions




PC Stainless Rail System
W70

Stainless Steel Sliding Track Hardware System

For Sliding Panels up to 240 lbs.



Configurations:
 Single
Bi-parting

Installations:
 Side Wall Mount (only)

Features:
 Made of 304 stainless steel
Nylon coated stainless steel for smooth operation
240 lbs panel capacity
5 year warranty



Standard Kit Sizes
Part Number
Track Length
Opening Width
 Price
W70_/6
78 3/4"
 less 36"
 $ 499
W70_/8
98 7/16"
more 36"
 $ 549

  See the Ordering information on the bottom of this page
this information will insure proper track set-up

Opening Size
Door Size
Overlap Closed
Overlap Open
Select Finish
Quantity

Finishes:
 Brushed Stainless Steel (standard)
Polished Stainless Steel (add 10%)
Satin Bronze Podwer Coated Stainless Steel (add 30%)
Satin Black  Powder Coated Stainless Steel  (add 30%)

W70 Kits Include:
 1 Stainless Steel Track
   Stainless Steel Wall Brackets
2 Stainless Steel Hangers
1 Stainless Steel Guide
2 Stainless Steel Stops Mounting Hardware





Instructions Dimensions

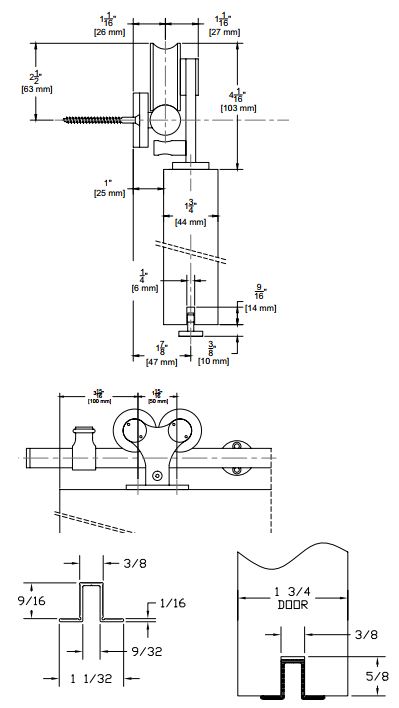

Dimensions




PC Stainless Rail System
W80

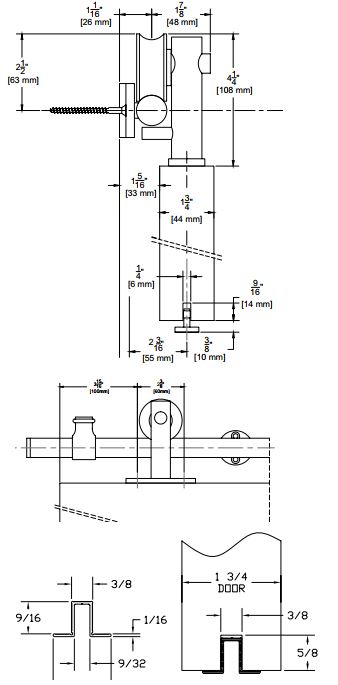

Dimensions

Stainless Steel Slinding Track Hardware System

For Sliding panels up to 176 lbs



Configurations:
Single
Bi-Parting

Installations:
Side Wall Mount (only)

Features:
Made of 304 stainless steel
Nylon coated stainless steel wheel for smooth operation
176 lbs. panel capacity
5 year warranty





Standard Kit Sizes
Part Number
Track Length
Opening Width
 Price
W80_/6
78 3/4"
 less 36"
 $ 395
W80_/8
98 7/16"
more 36"
 $ 445

  See the Ordering information on the bottom of this page
this information will insure proper track set-up

Opening Size
Door Size
Overlap Closed
Overlap Open
Select Finish
Quantity

Finishes:
 Brushed Stainless Steel (standard)
Polished Stainless Steel (add 10%)
Satin Bronze Podwer Coated Stainless Steel (add 30%)
Satin Black  Powder Coated Stainless Steel  (add 30%)

W80 Kits Include:
1 Stainless Steel Track
- Stainless Steel Wall Brackets
2 Stainless Steel Hangers
1 Stainless Steel Guide
2 Stainless Steel Stops Mounting Hardware



Instructions Dimensions




PC Stainless Rail System
W90

Stainless Steel Sliding Track Hardware System

For Sliding Panels up to 176lbs.

Configurations:
Single
Bi-parting

Installations:
Side Wall Mount (only)

Features:
Made of 304 stainless steel
Nylon coated stainless steel wheel for smooth operation
176 lbs panel capacity
5 year warranty



Standard Kit Sizes
Part Number
Track Length
Opening Width
 Price
W90_/6
78 3/4"
 less 36"
 $ 499
W90_/8
98 7/16"
more 36"
 $ 549

  See the Ordering information on the bottom of this page
this information will insure proper track set-up

Opening Size
Door Size
Overlap Closed
Overlap Open
Select Finish
Quantity

Finishes:
 Brushed Stainless Steel (standard)
Polished Stainless Steel (add 10%)
Satin Bronze Podwer Coated Stainless Steel (add 30%)
 Satin Black  Powder Coated Stainless Steel  (add 30%)

W90 Kits Include:
1 Stainless Steel Track
- Stainless Steel Wall Brackets
2 Stainless Steel Hangers
1 Stainless Steel Guide
2 Stainless Steel Stops Mounting Hardware



Instructions Dimensions

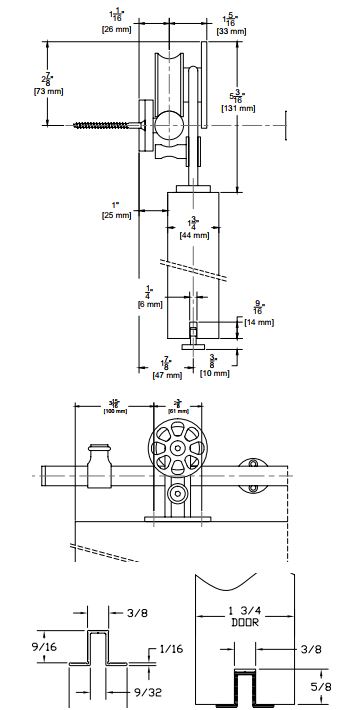

Dimensions



PC Stainless Rail System
W100

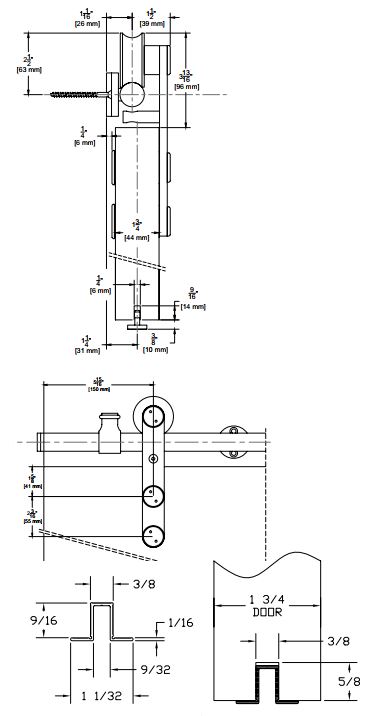

Dimensions

Stainless Steel Sliding Track Hardware System

For Sliding Panels up to 176lbs.

Configurations:
Single
Bi-Parting

Installations:
Side Wall Mount (only)

Features:
Made of 304 stainless steel
Nylon coated stainless steel wheel for smooth operation
176lbs panel capacity
5 year warranty



Standard Kit Sizes
Part Number
Track Length
Opening Width
 Price
W100_/6
78 3/4"
 less 36"
 $ 499
W100_/8
98 7/16"
more 36"
 $ 549

  See the Ordering information on the bottom of this page
this information will insure proper track set-up

Opening Size
Door Size
Overlap Closed
Overlap Open
Select Finish
Quantity

 Finishes:
 Brushed Stainless Steel (standard)
Polished Stainless Steel (add 10%)
Satin Bronze Podwer Coated Stainless Steel (add 30%)
 Satin Black  Powder Coated Stainless Steel  (add 30%)

W90 Kits Includes:
1 Stainless Steel Track
- Stainless Steel Wall Brackets
2 Stainless Steel Hangers
1 Stainless Steel Guide
2 Stainless Steel Stops Mounting Hardware





Instructions Dimensions





PC Stainless Rail System
CS-W60

Stainless Steel Sliding Track Hardware System with Cushion Stop

CS-W60 Series for Wood Doors
For Sliding Panels up to 176 lbs.

Configurations:
Single

Installations:
Side Wall Mount (only)

Features:
Made of 304 stainless steel
Cushion Stop Prevents door racking and bouce back
(not a soft close)
Extends life of upper hardware
Nylon coated stainless steel wheel for smooth operation
176lb panel capacity
5 year warranty



Standard Kit Sizes
Part Number
Track Length
Opening Width
 Price
CS60W_/6
78 3/4"
 less 36"
 $ 595
CS60W_/8
98 7/16"
more 36"
 $ 645

  See the Ordering information on the bottom of this page
this information will insure proper track set-up

Opening Size
Door Size
Overlap Closed
Overlap Open
Select Finish
Quantity

Finishes:
 Brushed Stainless Steel (standard)
Polished Stainless Steel (add 10%)
Satin Bronze Podwer Coated Stainless Steel (add 30%)
Satin Black  Powder Coated Stainless Steel  (add 30%)

CS-W60 Kit Includes:
1 Stainless Steel Track
- Stainless Steel Wall Brackets
2 Stainless Steel Hangers
1 Stainless Steel Guide
1 pair Stainless Steel Cushion Stops



Instructions Dimensions

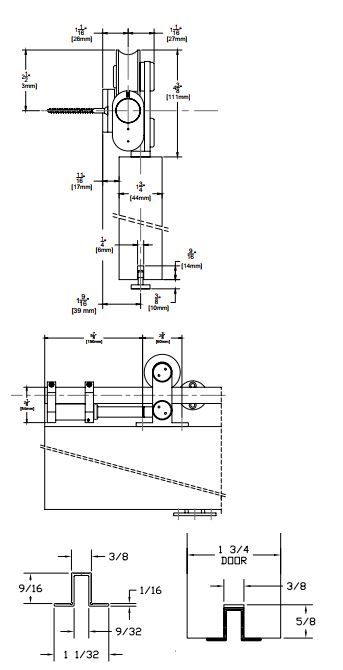

Dimensions



PC Stainless Rail System

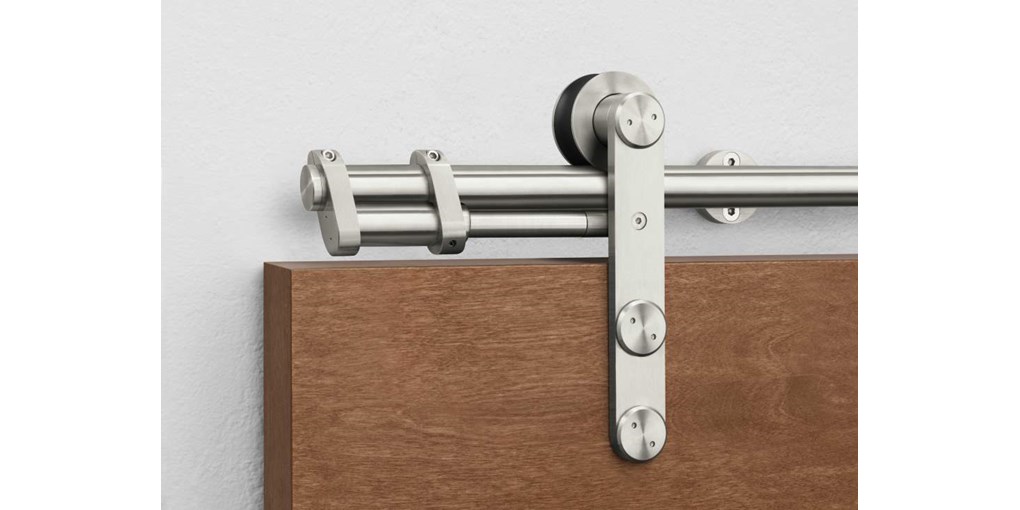

CS-W100


Dimensions

Stainless Steel Sliding Track Hardware System with Cushion Stops

CS-W100 Series for Wood Doors
For Sliding Panels up to 198lbs.



Configurations:
Single

Installations:
Side Wall Mount (only)

Features:
Made of 304 stainless steel
Cushion Stop Prevents door racking and bouce back
(not a soft close)
Extends life of upper hardware
Nylon coated stainless steel wheel for smooth operation
198 lb. panel capacity
5 year warranty



Standard Kit Sizes
Part Number
Track Length
Opening Width
 Price
CSW100_/6
78 3/4"
 less 36"
 $ 499
CSW100_/8
98 7/16"
more 36"
 $ 549

  See the Ordering information on the bottom of this page
this information will insure proper track set-up

Opening Size
Door Size
Overlap Closed
Overlap Open
Select Finish
Quantity

Finishes:
 Brushed Stainless Steel (standard)
Polished Stainless Steel (add 10%)
Satin Bronze Podwer Coated Stainless Steel (add 30%)
 Satin Black  Powder Coated Stainless Steel  (add 30%)

CS-W100 Kit Includes:
1 Stainless Steel Track
- Stainless Steel Wall Brackets
2 Stainless Steel Hangers
1 Stainless Steel Guide
1 pr Stainless Steel Cushion Stops



Instructions Dimensions

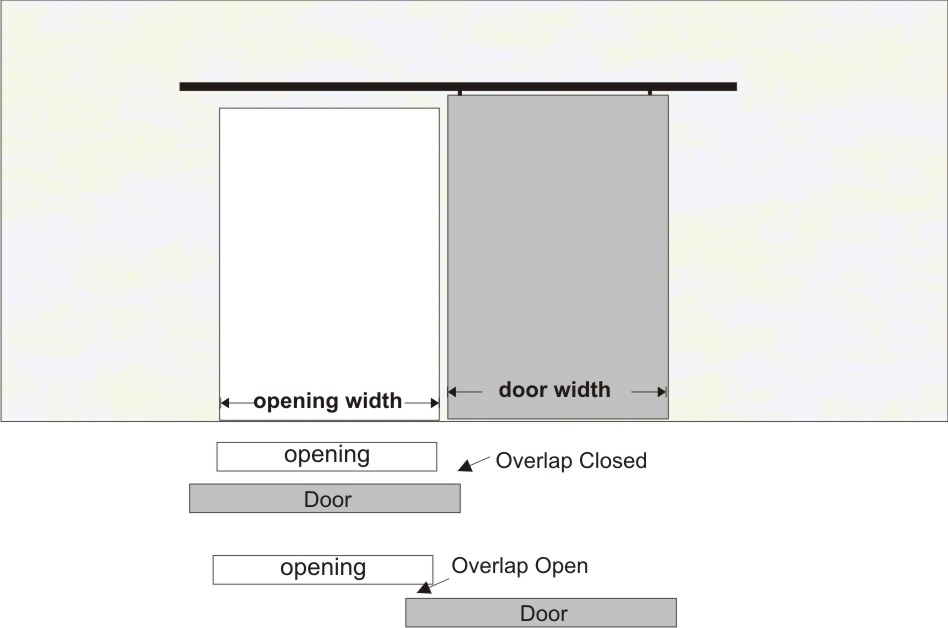

Information Needed to Provide Proper System Size
Opening Width Width of opening in wall
Door Width Width of door
Overlap Closed normally door width minus opening width
Overlap Open Normally 0 to 1/2" - If there is a surface mounted pull on the inside, this will be greater
