Husky Door Track Systems

FF
Husky
200 LB TRACK AND ROLLER SETS		 Listed Weight requires 2 rollers per door

We are proud to offer PC Henderson Husky Pocket Door track and hardware kits. These kits are rated at 200 pounds per door using precision made components.
Tracks are available in either Steel or Aluminum - Track Clip Stop holds door in place at either end

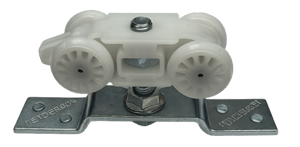

Roller Options
H200 Pack Stainless Roller Only Old Style Metal Roller
Instructions
180 lbs 200 lbs 200 lbs
$ 49.99 per kit $ 199.99 per roller $ 74.99 ea
pocket door pocket door roller
Metal Body
plastic color may vary
 Metal Body
Plate Dimension 1" x 4 3/8" Plate Dimension .8" x 4.16" Plate Dimension .8" x 4.16"
Kit includes:
2 Rollers
2 Clip Stops
1 BG1 Bottom Guide

(1) Roller Only (1) Roller Only


Dimensions Instructions

order track below to go with rollers above

Track Options
Extruded Aluminum Track Rolled Steel Track Stainless Steel Track

1 1/4" tall x 1 3/16" wide		 18 G 1 1/8 " tall x 1 3/16" wide 1 1/8" tall x 1 3/16" wide


Quantity

Quantity
;


Specialty Door Kits
Husky Glass
Clamp Kit		 Minimum Clearance Kit
200 lb door 		Converging Door Kit
Simultaneous Action





LP 200/LH100

Clearance from top of door
to the track is less than 1/8"


SIM200

opening/closing one door automatically
operates paired door

$ 649.99
kit with 6' track		 6' KIT $ 439.99
8 ' KIT $ 469.99 		12' KIT $ 619.99
(2) 6' ALUM tracks for 2 doors
16' KIT $ 659.99
(2) 8' ALUM tracks for 2 doors
  more information more Information
Instructions Instructions
Instructions2

Quantity

Quantity

Quantity
2 rollers/Hangers
2 Clamps
2 End track Stops
Aluminum Track 		2 rollers/Hangers
for Min Clearance Mount
280 Aluminum Track		 4 rollers/Hangers
Simultaneous Unit

(2) 280 Aluminum Tracks
Max Door Weight 165 lbs.
Glass Weight / Thickness
5/16"
 3.95 lbs./sq. ft.
3/8"
 5.05 lbs./sq. ft.


all specialty Kits include 280 Aluminum Track






Decorative Sidewall Track Kits
with Soft Close both ends

3 Styles - 2 Finishes

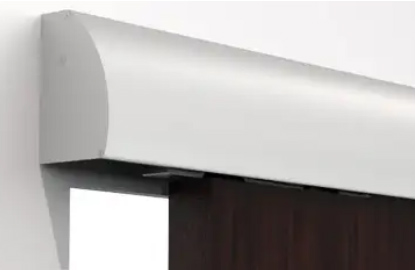

Radius





Special - 2 week lead time

Square




Special - 2 week lead time

Traditional


Special - 2 week lead time





Sidewall Track Kit Pricing
6 foot Silver $ 599.99
8 foot Silver $ 729.99
12 foot Silver $ 899.99
6 foot Bronze $ 629.99
8 foot Bronze $ 749.99
12 foot Silver $ 919.99

8' and 12' include the Freight Adder

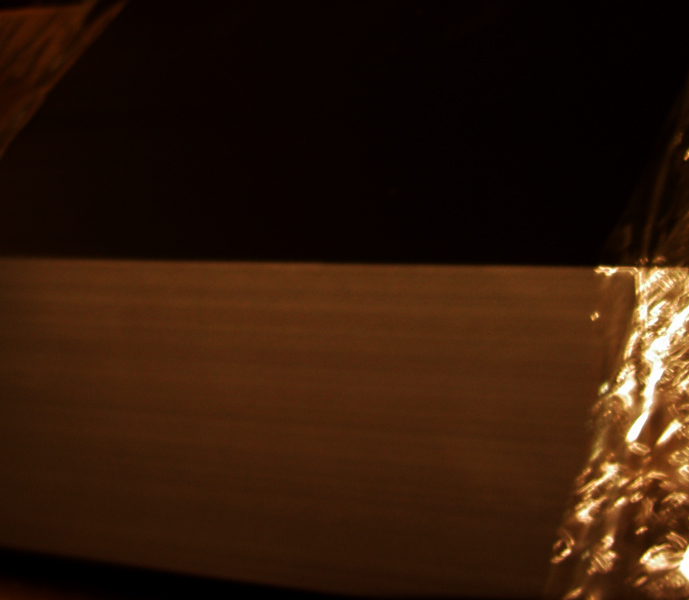

Also Available in
Bronze Finish


click for larger image


instructions

instructions

instructions

PC Henderson
Wall Mount Kit


Available in Silver or Bronze
includes :

Standard Soft Close Both Ends
(2) track clip stops
(2) End Plates

Track and Fascia
Bottom Guide
sidewall kit
Clean Concealed look
for wall mounting of
doors with
Exposed Fascia


Double Sidewall Kit
for 1 3/8" thick doors

Kit includes:

Double Track

H100/200 Hardware Kit
with rollers stops and guides

Side Wall Brackets

Front Fascia - optional

wall mount track
Attach 2 x 3 or 2 x 4 wood stud to wall
wall mount track kit
attach track to stud above
Space for thickness of door
Attach fascia to the stud
to cover stud and Track

Simple Construction for Surface mounting track

For More Details - Click on Images Below

Pocket / Sliding / Folding
Door Track and Kits
Link to more
Information
Max Weight
Sliding Door
pounds
Top Spacing
Minimum
Track Material Options
Bearing
Rollers
Folding Door
Applications
Glass
Clamp Kit
Pocket Door
Frame Kits
In Stock

Aluminum
Steel
Stainless
Steel
Bronze
Finish
Husky
200

1 7/8"
x
x
x
x
x

Johnson 1025
100
1 9/16"
x
x

Johnson 1125
200
1 3/4"
x

x
x

x

I Track
300
3 1/8"
x
x
x
x

KT - KrisTrack
440
2 3/8"
x
x
x
