Pocket Door Dutch Door


Allows complete door or just bottom section to be pulled from the pocket

DUTCH POCKET DOOR DIAGRAM Kit Includes
Top track and Roller Kit
2 rollers
6' of track
Track stop
Bump Stops
Adjusting Wrench
100 lb Bottom track and Rollers
Double Ball bearing Center Guide Bearings
Center Guide Channel with Nylon Insert
Flush Bolt And Stike
Wall Mounted Nylon Guides


Edge Pull - Flush pull
or
Latching Combo unit

Door Should be approx 1" wider than the opening
A thicker stop will help in installation and door removal
The door should have full contact with the guide

Order complete kit for doors up to 36" wide
$ 329.99

Choose Passage
Edge pull / Flush pull
or
Latching add $30.00
Combined unit with Jamb Hook

36" x 80" Frame Kit Option
For open wall - New Construction
$120.00

Select finish for trim hardware
latching Otion
Frame Kit Option





Now Available
Bottom only of Dutch door kits
for Specialty applications

Top Door Center of Door Bottom Door
top roller
Ball Bearing Top Rollers
 Guide Channel
Recessed into top of bottom door

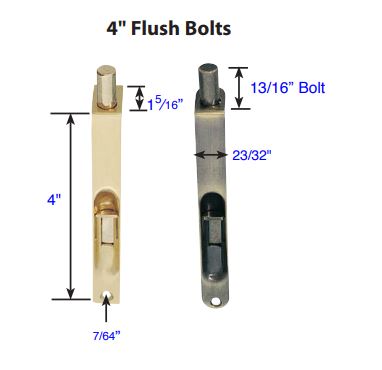

extends 6" past edge of door 		Flush Bolt
3/4" x 4"

Bottom Mounted Rollers

approx size
3/4" x 3" x 1 1/2" deep
Track Mounted Stop Bearing Guide
Attached to bottom of top door
1" x 4.25"		 2 sets of guides
installed at the edge of pocket

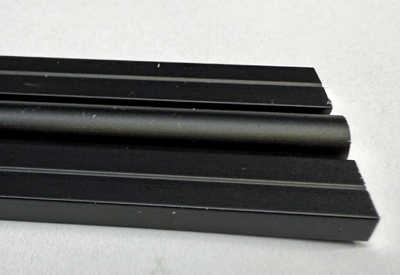

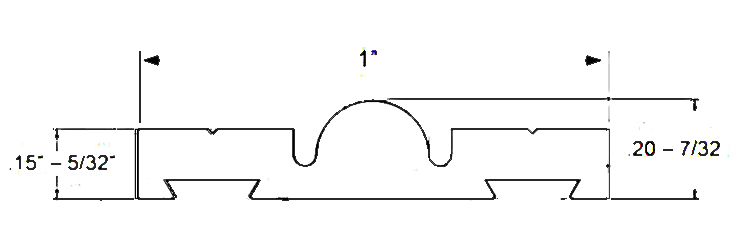

Low Profile Bottom Track

.811 wide x .275 tall
top track dutch pocket door strike
 cap
Top Track
 Guide Channel
installed into top of Bottom Door
requires 15/16" x 7/8" groove

Strike and track end cap

 Black cap Visible on edge of Door
simplifies Installation


2 Trim Options Available

Passage Units


Edge Pull
4" x 3/4"



(2) Flush Pulls







Latching Units
PRIVACY

poocket hook
Hook to latch door to Jamb

Standard Turn on one side
Coin turn on the other

dutch pocket door latch



4 1/2" X 2 1/2"
Flush pull Edge pull Combo 		Stops door from being opened
by animals or children





Instructions and Layout for System

Page1 - Page2

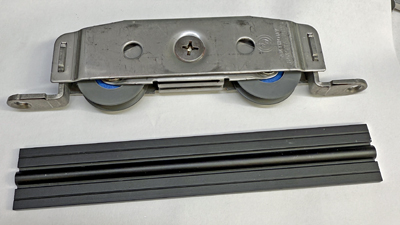

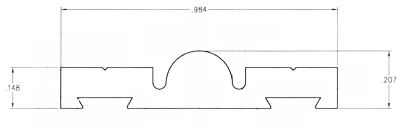

Dimensions for Bottom Track/Roller

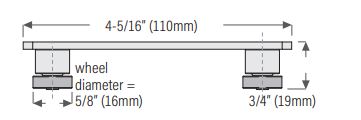

 Bottom Roller

strike Jamb should be set up with extra Support like shown below
DUCTCH POCKET DOOR STOPS
DUTCH POCKET DOOR DIAGRAM

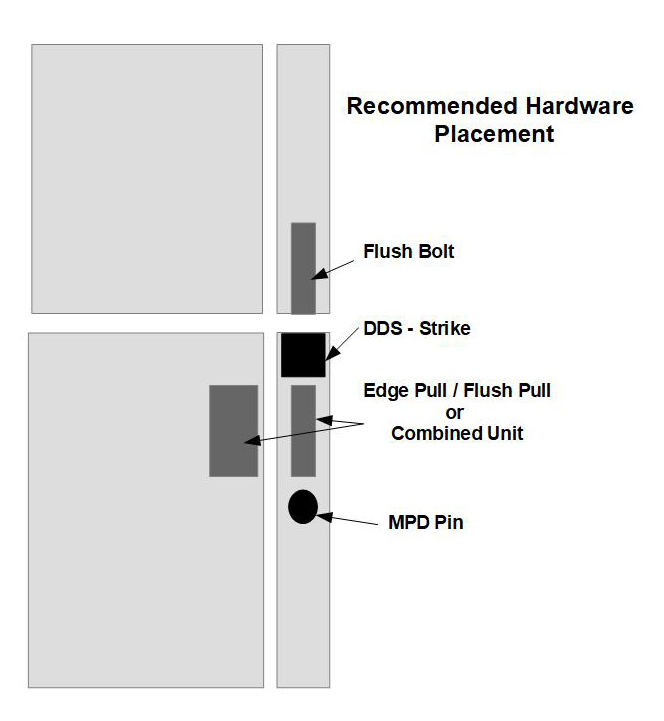

Layout for Guide and Guide Channel between the doors


TOP DOOR POCKET DUTCH DOOR
A hole can be drilled in the back wall support to accept the extended track



Optional Frame Kit for Dutch Door Kits
dutch pocket door frame kit

Kit Includes

(4) metal wrapped wood uprights for 80" door
(2) 2x4 wall floor brackets
(2) Header Hanging brackets
(1) Top Header



for 2x4 wall construction

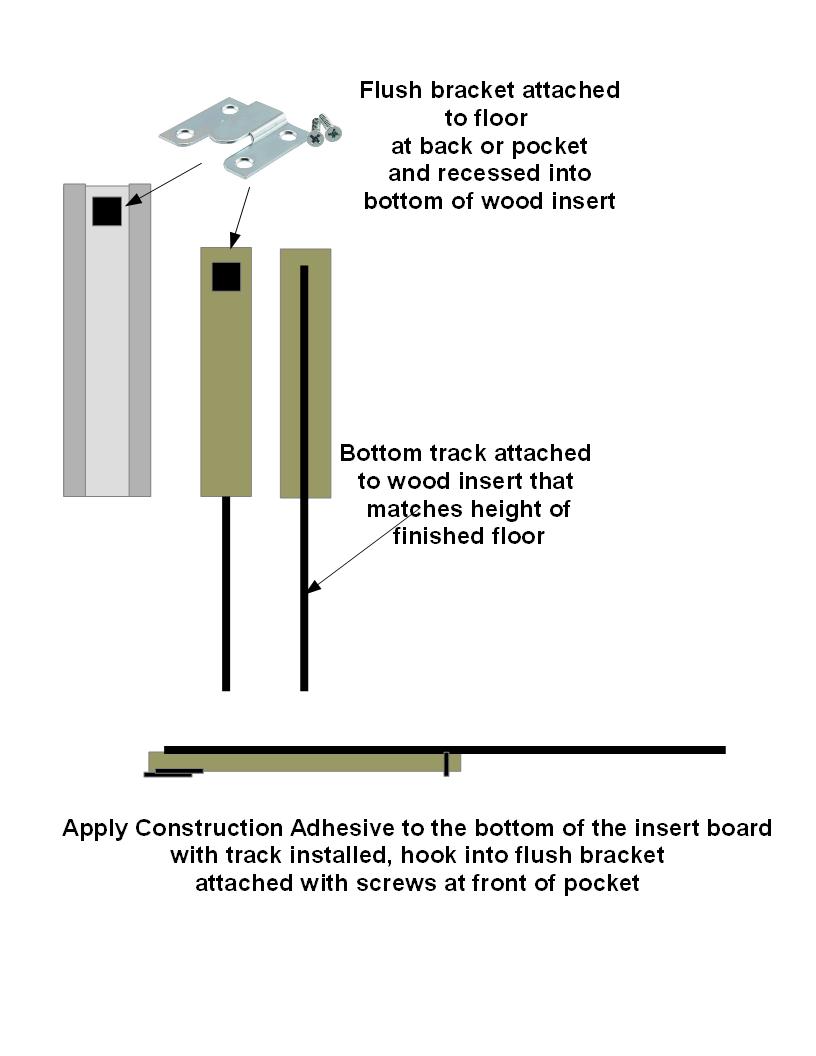

Optional install process if access to the pocket is not possible after finish floor is installed

dutch pocket door bottom track
dutch pocket door insert
Floor insert
Board should match height of finished floor
hook recessed into back
complete track attached to surface
Screw to floor at opening
Construction adhesive will give extra support





Bottom Of Dutch Door Only
For application of half wall or only need of short Door
pocket dutch door kit strike Jamb should be set up with extra Support like shown below
DUCTCH POCKET DOOR STOPS

Included Parts

Same as Dutch Door Kit
Bottom Track and (2) rollers Guides(1) Guide Channel and Bearing Guide
bottom rollerbottom track guideguide channel
Install Guide Channel last to help with instal

Guides(1)


Passage Units


Edge Pull
4" x 3/4"



(2) Flush Pulls





Latching Units
PRIVACY

poocket hook
Hook to latch door to Jamb

Standard Turn on one side
Coin turn on the other

dutch pocket door latch



4 1/2" X 2 1/2"
Flush pull Edge pull Combo 		Stops door from being opened
by animals or children

$ 259.99

$ 289.99

Order Bottom only of Dutch door Pocket door KIt
No top track or rollers

Select finish for trim hardware

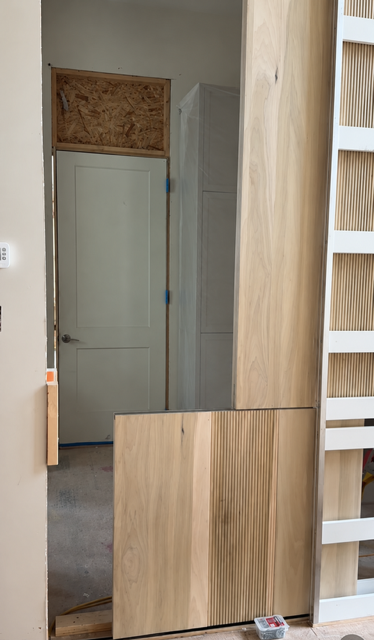

dutch pocket door dutch pocket door dutch pocket door dutch pocket door

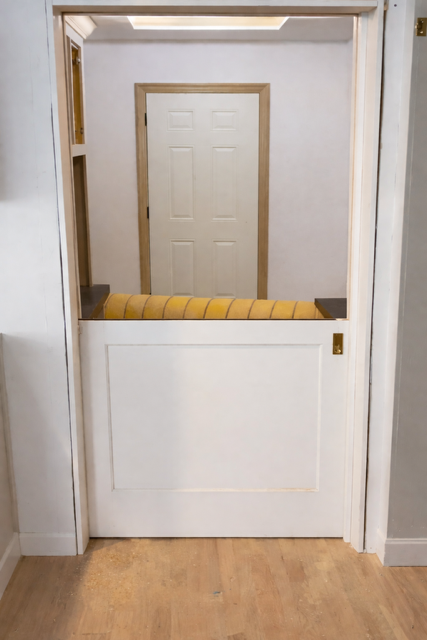

Dutch pocket door install with upgraded hardware by
