Barn Door Privacy Locks
|
 |
Modern
Barn Door Privacy Lock
Strike available with integrated Flush Pull
Mounts to interior side of the door & jamb
Handing NOT Required
1-3/8" Minimum for Door Thickness
Solid Brass Material
|
 |
|
 |
 |
 |
Lock with Standard Strike

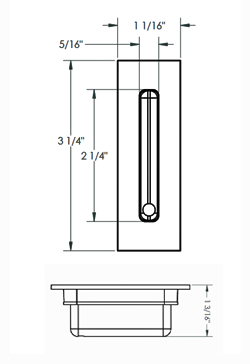

1 1/16" x 3 1/4" x 1 3/16" deep |
Lock with Flush pull strike Combo
7" x 5" x 1 3/16" deep
|
|
BDL201 |
BDL202 |
|
$ 89.99 |
$ 149.99 |
|
|
|
|
 |
 |
|
instructions |
dimensions |
|
|
BD1000 Surface Mounted Barn Door Lock |
 |
 |

2 Versions |
 |
 |
Standard Arm
13/16" |
ADA Arm
1-9/16" |
|
|
Privacy lock for sliding barn door openings, with discrete screw fixing
to jamb. Dust-proof strike installed on barn door. Emergency release key
provided.
Stainless Steel and Cast Alloy
Adjustable strike for door thickness from 1-3/8" to 2-1/4"
|
3-9/16" x 1-7/8" x 9/16" Lock Case
1" Throw Bolt
|
Standard Thumb Lever (BD1022): 13/16"
ADA Thumb Lever (BD1023): 1-9/16"
Field Reversible |
Surface mounted on jamb for quick installation
Suitable for any type of wall or jamb surface
Easy to use one-touch Thumb Lever
|
Discrete release button with decorative cap installed
on outside of door for emergency release
5 designer finishes |
|


|
$ 129.99
|
|
Barn Door Jamb Bolt |
 |

Jamb Bolt Extends 1 1/2" |

Includes jamb strike |
the New oversized jamb bolt provides and simple and
clean looking
privacy barn door lock option.
When in the locked position the arm extends 1.5" from the face of
the door and will hit the included jamb strike, preventing the door
from being slid open
A small hole can be drilled on the outside to allow
for emergency access
|
$ 21.99
Select your finish below
|
|
|
Flush Style Jamb Mounted Barn Door Privacy Locks |
 |
 |
 |
 |
Flush mounted Barn Door Locks
Flush mounted locks attached to jamb and slides out bolt into door mounted Strike
Available in round or Square Design
Square Design has ADA turn knob
Max Spacing between the door and jamb is 1 1/4" using provided spacers
Distance from Center of turn to edge of wall is 2 1/4"
Instructions
|
Rectangle trim
with ADA turn
$ 99.99

Dimensions
|
Round Trim
shown
with Standard Turn
$ 89.99

dimensions |
|
|
|
 |
Square Trim
$ 89.99
 |
2 Backsets Available
2 1/4" or 3 1/2" |
|
 |
 |
SHIPS IN 3-4 DAYS |
|
|
Heavy Duty 142PRIV |
|
Light Duty 1307 |
 |
Slide latch attaches to Jamb and Strike is attached to the door
Sliding the latch into the strike prevents door from moving
|

available in 4 finishes |
 |
 |
Available in 3 finishes |
Black |
$ 47.00 |
Painted Bronze |
$ 60.00 |
Satin Nickel |
$ 60.00 |
|
From $ 22.99
|
Instructions - Dimensions |
 |
|
Heavy Duty Barn Door Keyed Lock
Large Case with Pop-out Edge Pull
|

|
Keyed Entry
$399.99
Privacy
$ 379.99
|

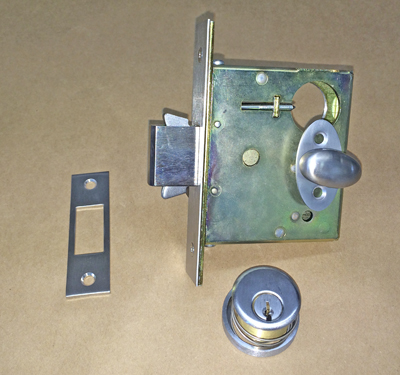

Heavy Duty lock for sliding doors
Mortise Case with Projecting Hooks lock
into Included Strike 3/16" on each side
5 pin Mortise Cylinder with trim ring
Interior Turn knob has a 1" projection
Includes push button Built in Edge Pull

Template
|
Heavy Duty Barn Door Keyed Lock
Small Case without Edge Pull
4" x 3 3/8" |
|
Keyed Entry
$ 429.99
Privacy
$ 419.99
|
Heavy Duty lock for sliding doors
Mortise Case with Projecting Hooks lock
into Included Strike 3/16" on each side
5 pin Mortise Cylinder with trim ring
Interior Turn knob has a 1" projection
available in
4 finishes
Also Available as a Privacy with
exterior emergency trim
|
|
