Exterior Endfold Offset Door Systems

3 Door Systems from $ 2,700.00

System includes, top track, threshold, hangers,hinges, flush bolts and weather-stripping


Framing must be built to the Specifics in the Instructions
Ths system is desinged to be installed by a Professional Door Hanger

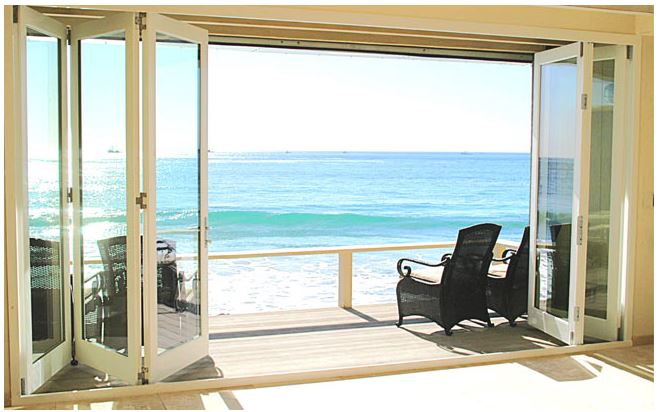

exterior folding door

Fully Weatherstripped Folding Door Kits For Exterior Applications


Exterior folding door system

exterior folding door
exterior folding door
Folding Door Hardware for Exterior Door Applications
Fully Weatherstripped
exterior_folding _door

please contact us for more information
your exterior folding door system can be delivered in 3-4 weeks


In order to accurately place your order we would need to know the following
How Many Doors?
In swing or out swing? extrior folding exterior outswing system

Folding Direction
how many Left?
how many Right?

See examples's below

folding door hardware folding door system

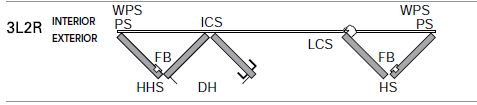

  4L 1 R 3L 2 R
It is always best to have an odd Door Count to allow for a free swinging door
Door Size? max panel width 48"
Door Thickness? max panel thickness 2.25" if using threshold - 3" when using floor channel
Door Weight? max. panel weight 250 lbs
Door Height? max. panel height 144"
Opening Size?
Top track and floor threshold Bronze Finish Standard
Weahterstip Color Black, Bronze, White?
Finish of Hardware and track Stainless, Bronze, Brass?

Bottom Threshold Options

Bottom, threshold or channel?

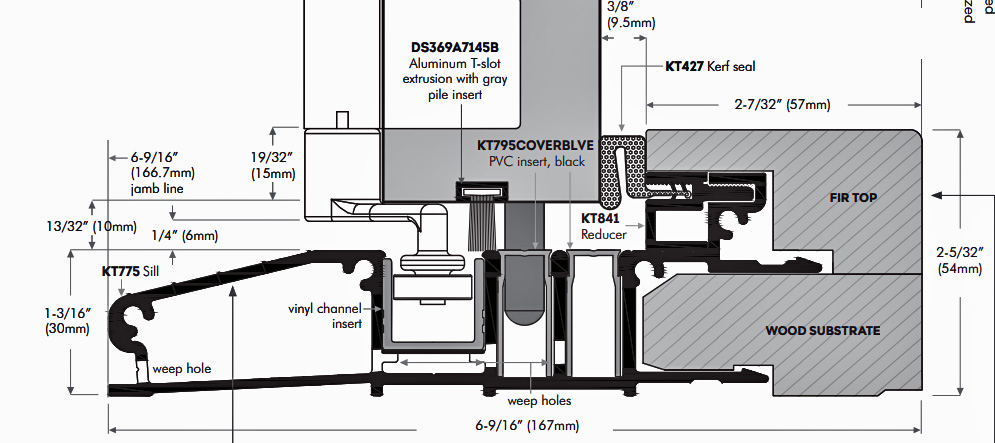

Standard Threshold
Seals best
helps keep out weather and water


Standard Threshold

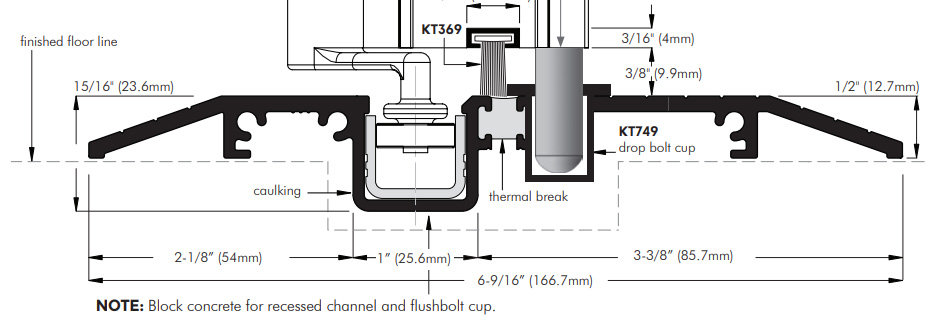

ADA Threshold

Does not seal as well as Standard
Helps to Prevent water from entering
Requires 1/2" recess into concrete


ADA Low Rise Threshold

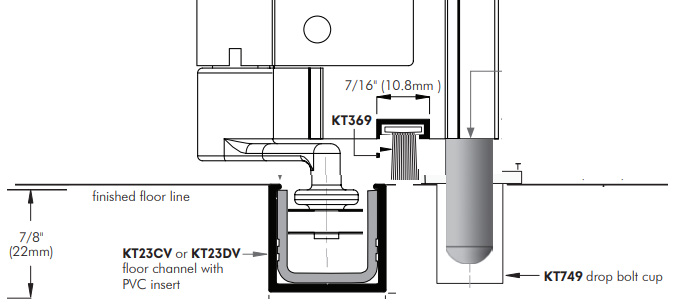

Recessed Channel

Flush to the floor minimizes interruption

Does not seal well
brush can drag on floor
Water can easily get to the inside



Recessed Channel



E3 System for doors up to
250 lbs



Number of Doors 2 3 4 5 6 7 8
with bottom threshold $ 3,400 $ 3,800 $ 4,850 $ 5,650 $ 6,900 $ 7,300

$ 7,900

with bottom Channel only $ 2,600 $ 3,200 $ 4,250 $ 5100 $ 6,300 $ 6,500 $ 6,700


Above pricing is for doors up to 7'
Doors between 7' and 8' add 15 %
Doors from 8'-12' add 35%


Lead time 3 weeks

Includes Top Track, Bottom Threshold, All Weatherstipping, Flushbolts Hinges and Instructions
On free-swinging application, you will need to supply your own lock hardware

You supply the doors and create the header and Jambs to the layout in the Instructions

Shipping to 48 States is
$ 500.00 per order


New E2 System
For Light Duty Doors

Max Door Width 36" 1 3/4" thick doors Only
Max Door Height 84" Bronze finish Only
Max Door Weight 125 lbs Outswing Systems Only
Standard E2 Systems now quick ship - ships in 2-3 Days



Number of Doors 2 3 4 5 6
with bottom threshold $ 2,500 $ 2,900 $ 4,400 $ 5,200 $ 6,000
with bottom Channel only $ 1,900 $ 2,300 $ 3,800 $ 4,400 $ 5,500

Includes Top Track, Bottom Threshold, All Weatherstipping, Flushbolts Hinges and Instructions
On free-swinging application, you will need to supply your own lock hardware

You supply the doors and create the header and Jambs to the layout in the E2 Information pages
E2 systems are 1/2" shorter than E3



Offset Application allows for Full Weather Protection

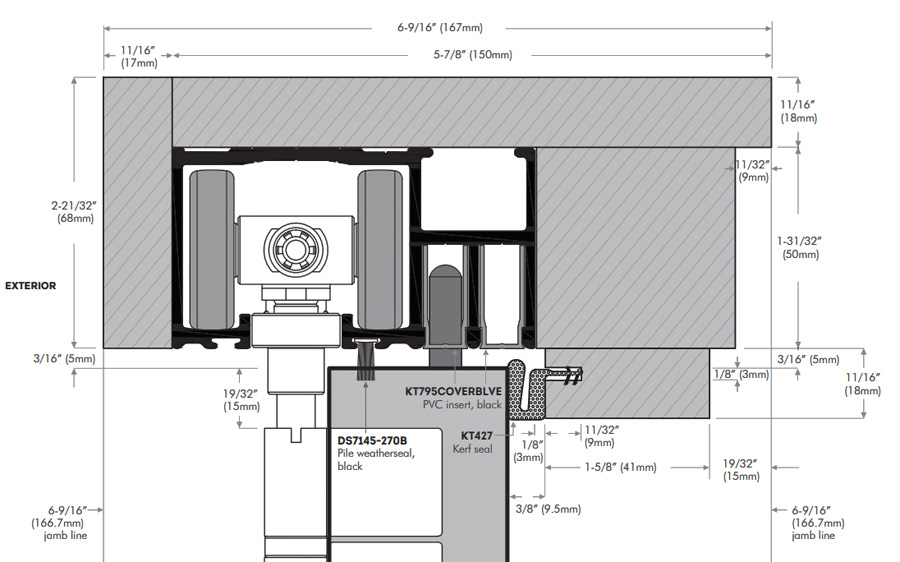

Top Track Layout

The Top Header must be build to these sizes

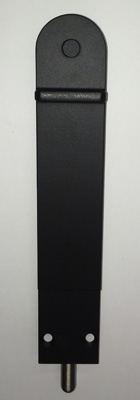

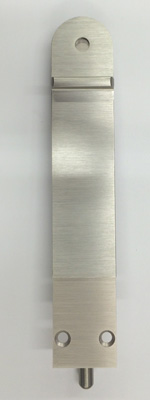

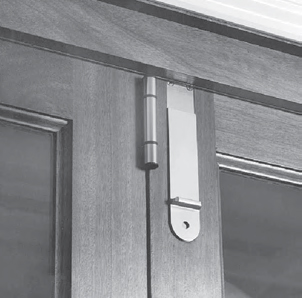

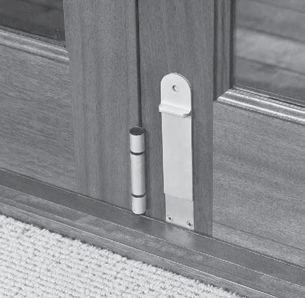

Face Mounted Flush Bolt for folding doors

flush bolt exterior flush boltflsuh bolt for sliding door
pin size 3/8"

Made of Aluminum in
Silver, Bronze or Bright Gold Finish
flush bolt bronzeexterior flush bolt bronze exterior stainless flush boltstainless flush bolt
8" long

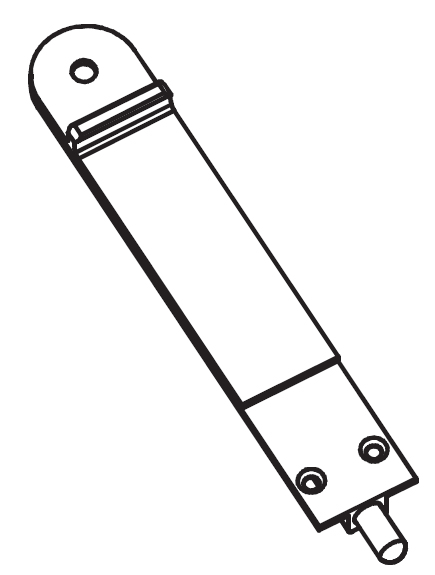

Straight Flush Bolt
face to center of pin 1/4"

8" long

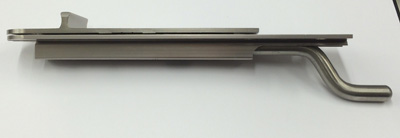

Offset Flush Bolt
face to center of pin 1.31"

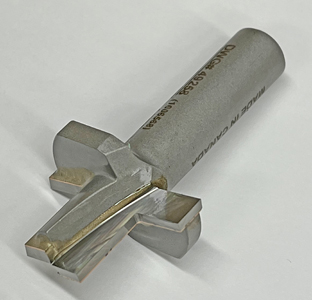

  FLUSH BOLT BIT

Flush Bolt Router Bit
$149.99




KTE2DBFORB

offset door diagram

Purchase Flush Bolts and Hinges separate

Interior Folding Door Systems



Flexirol Heavy Duty Folding Doors



Stacking Doors



How Many Doors
In-swing or Out-Swing


Folding Direction
Left
Right


Door Size
Door Thickness
Door Weight
Door Height


Finish of Hardware
Stainless, Bronze, Brass


Floor
Standard Threshold
ADA
Channel Only


Weather Strip Color

E 3 Catalog

E3 Instructions

E2 Catalog

E2 Instructions

E2 135 LBS
